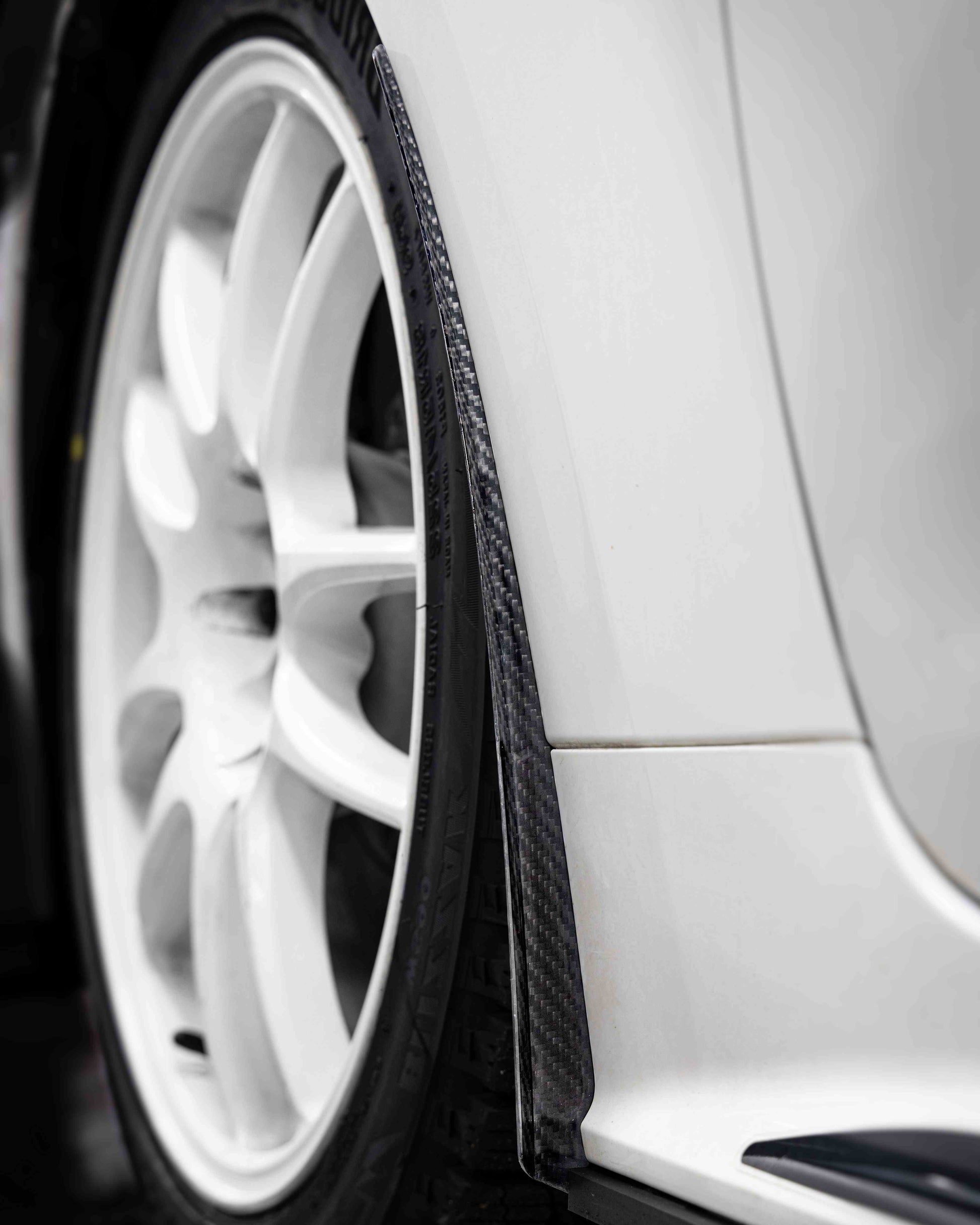

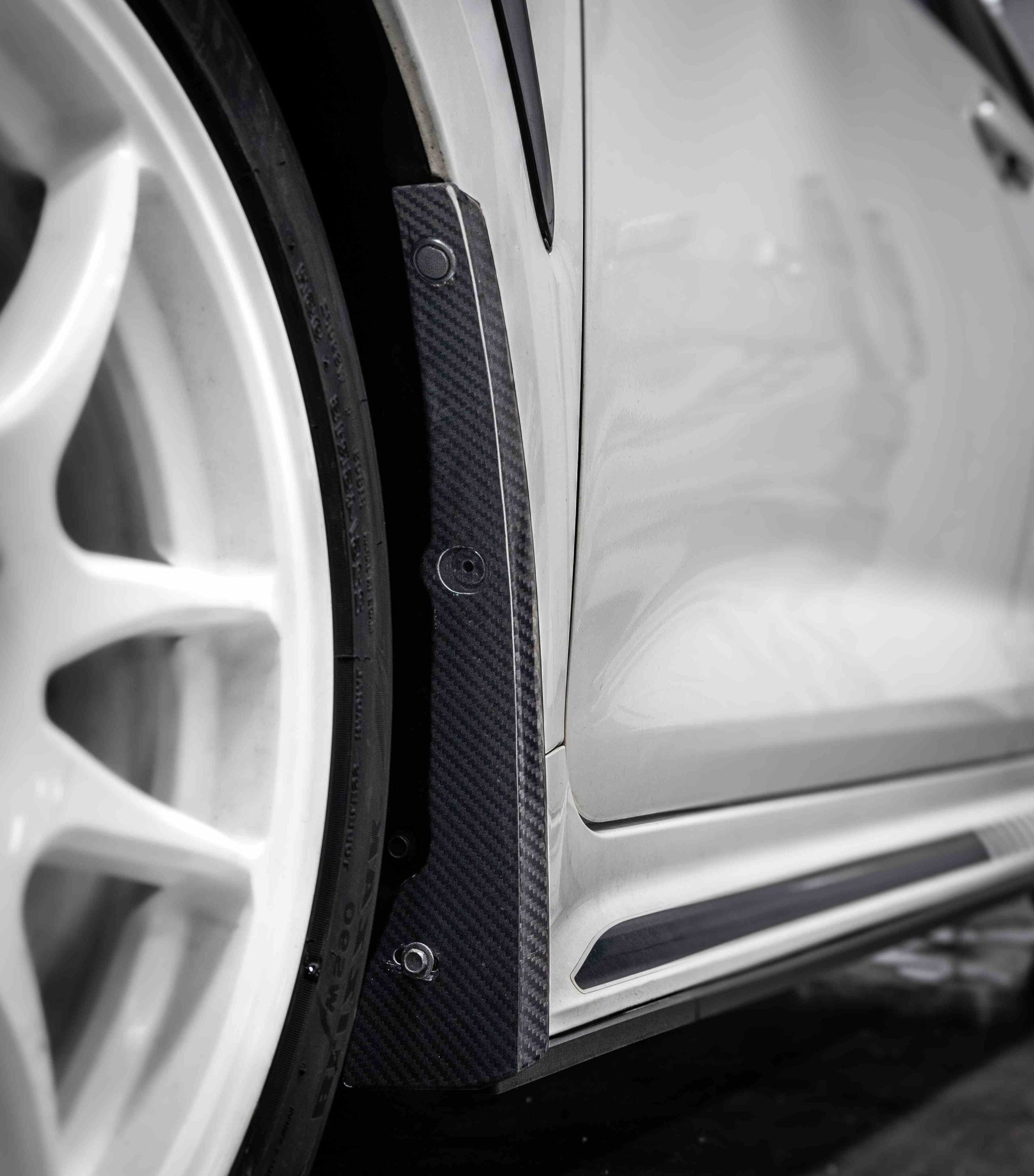

  • GR Corolla front carbon guard
  • GR Corolla front carbon guard

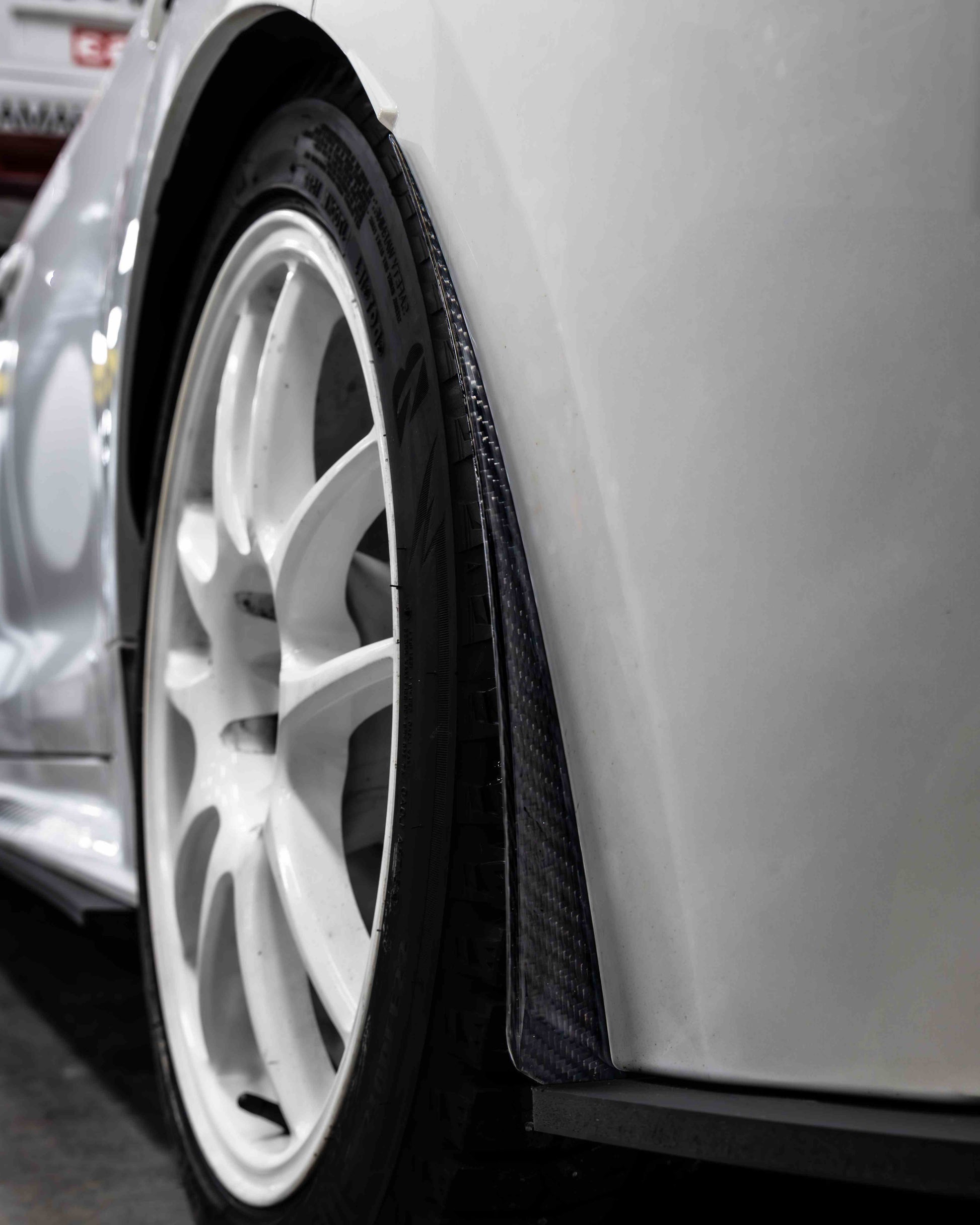

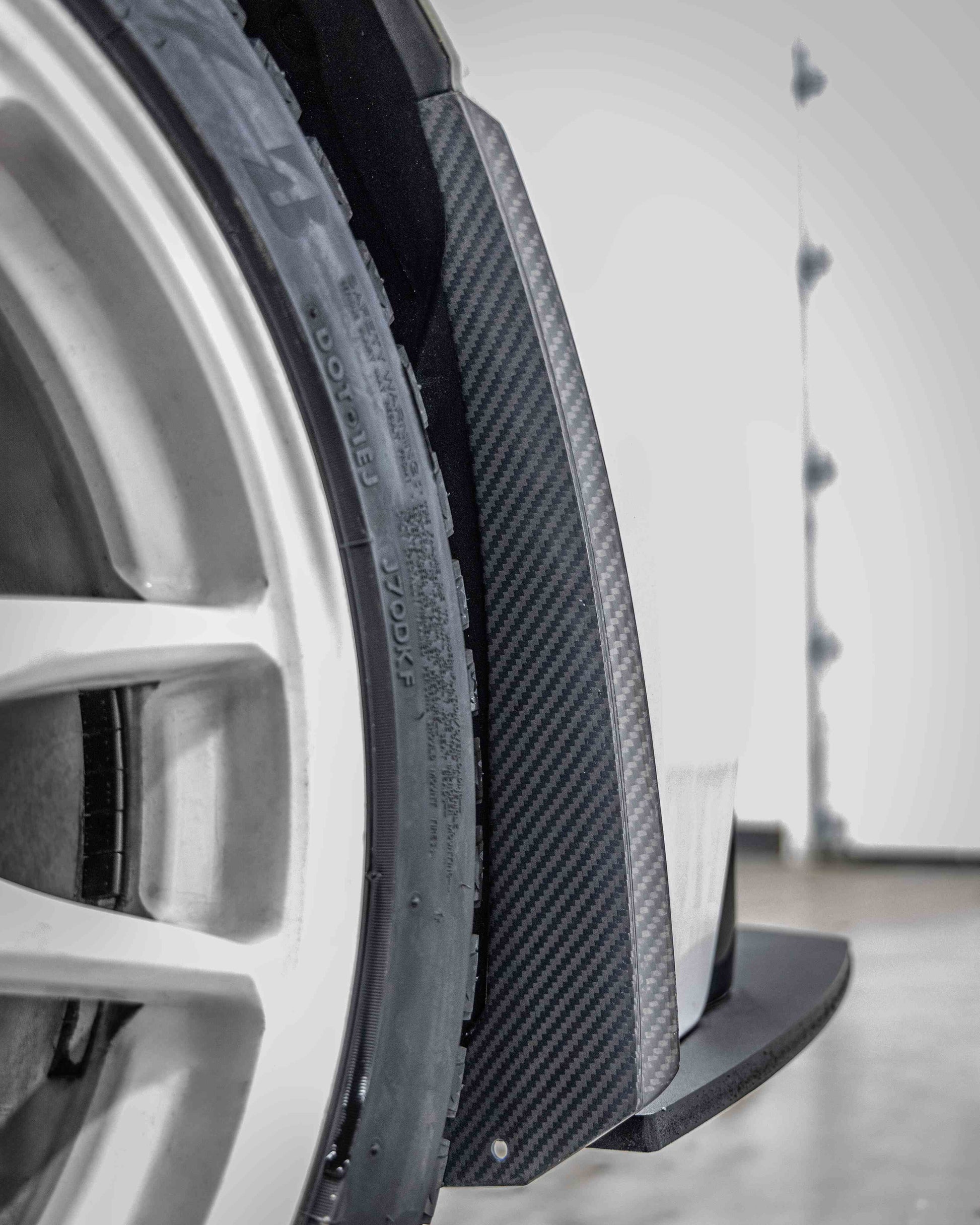

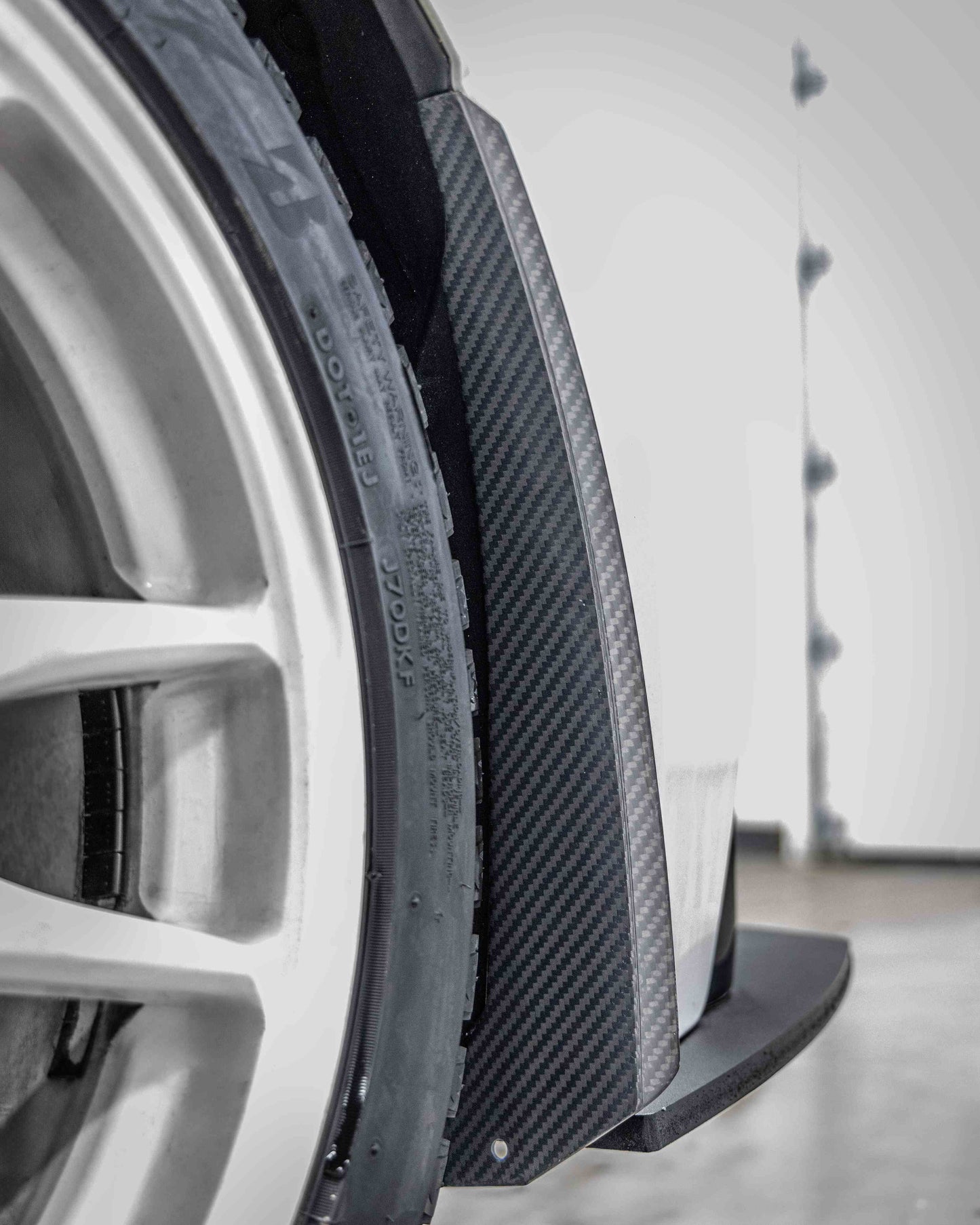

  • GR Corolla rear carbon guard
  • GR Corolla rear carbon guard

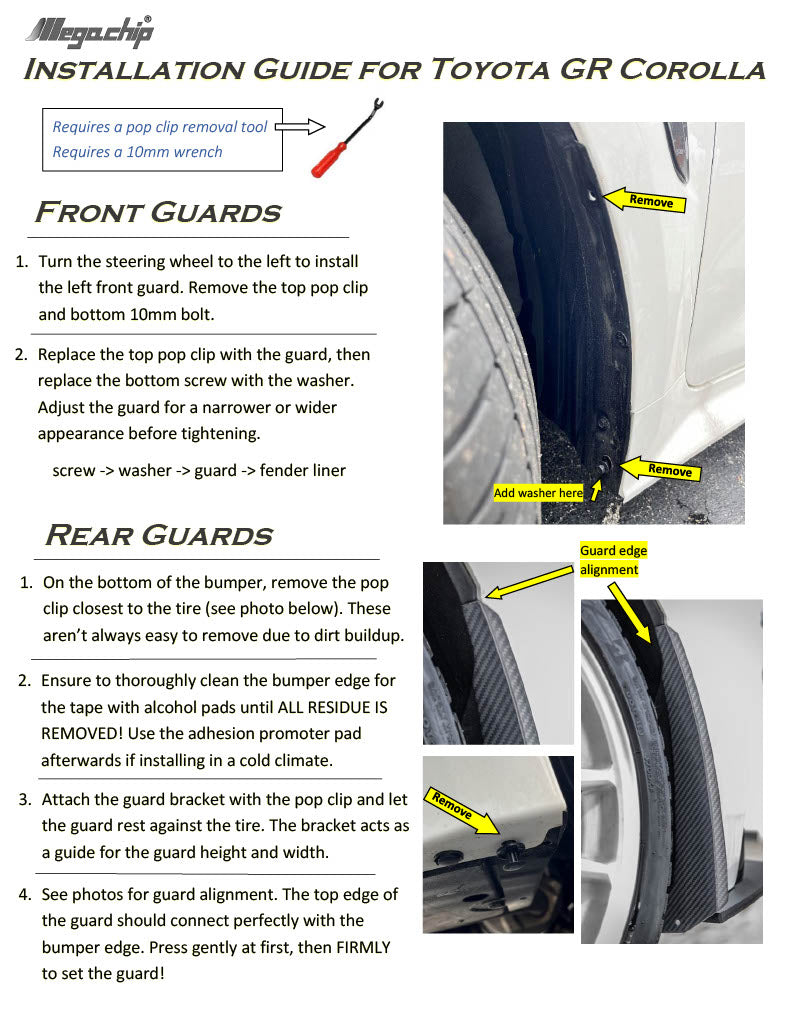

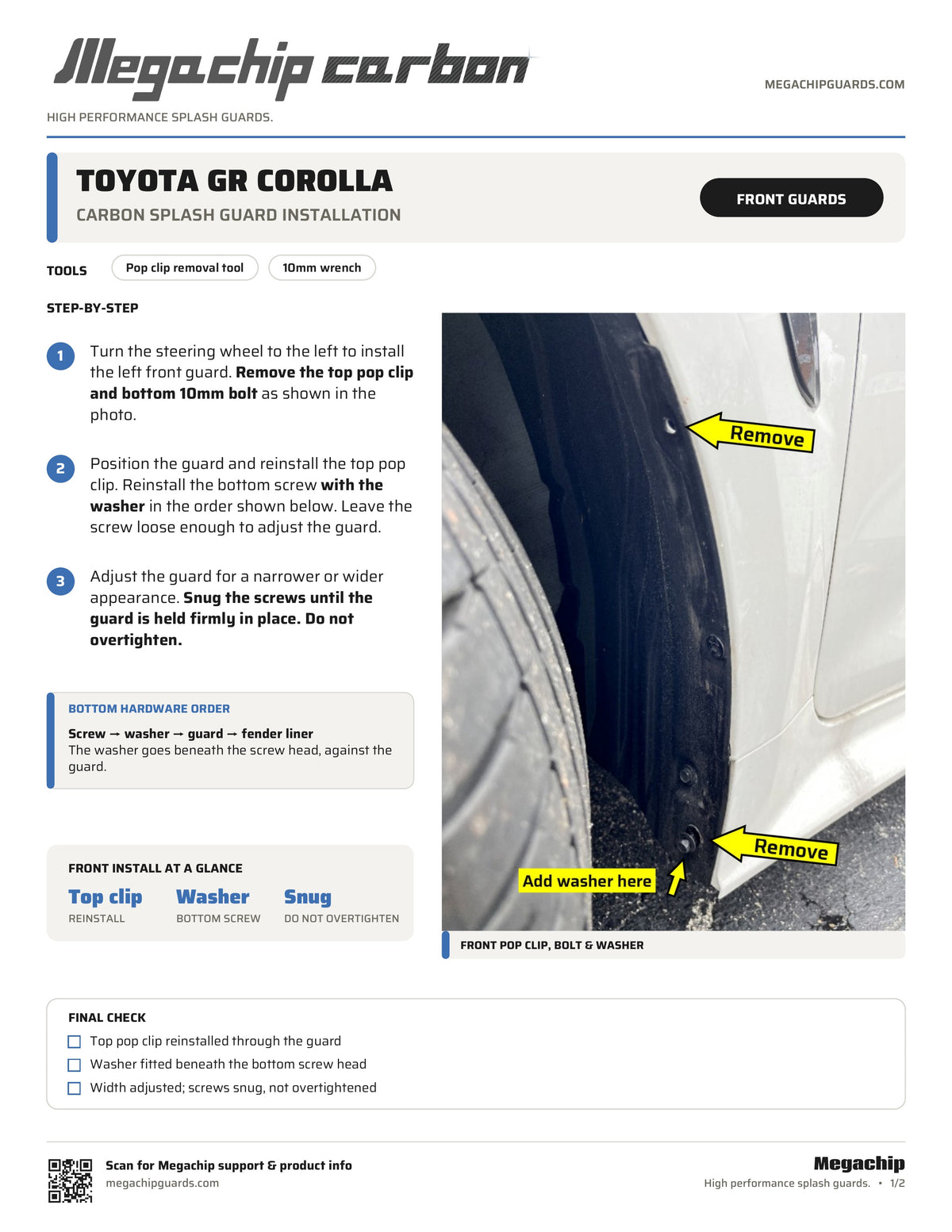

  • Megachip Toyota GR Corolla Carbon splash guard installation instructions, page 1 - front guards

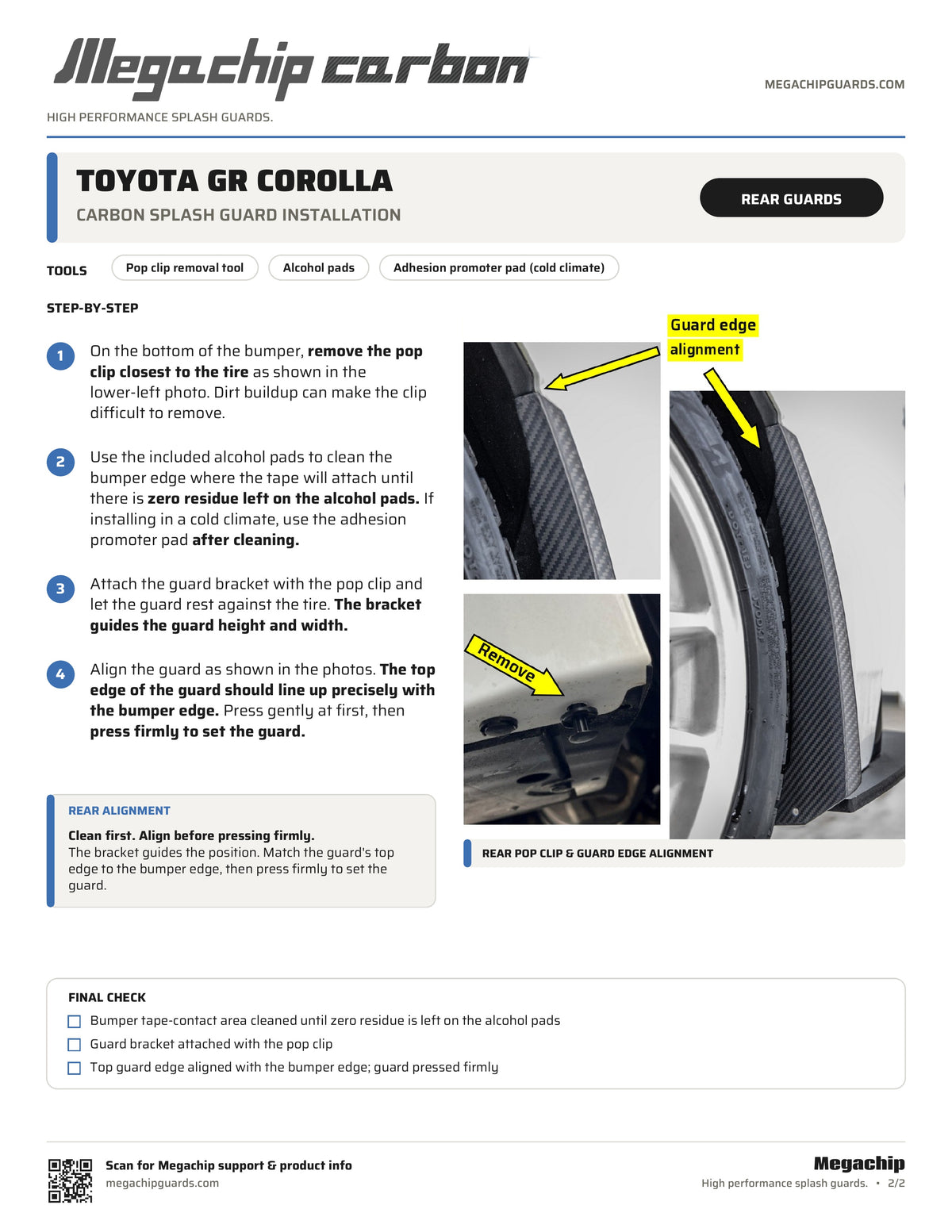

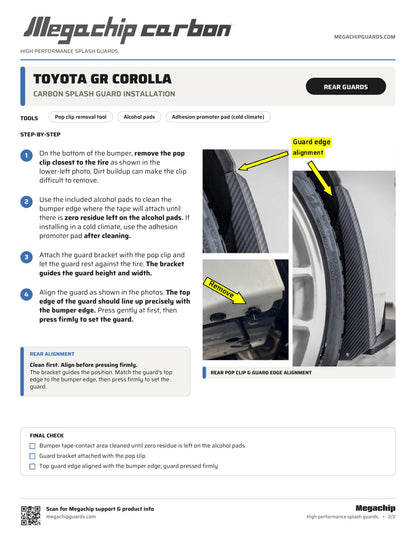

  • Megachip Toyota GR Corolla Carbon splash guard installation instructions, page 2 - rear guards
1 9

Toyota GR Corolla Carbon Guards 2022-2025

Toyota GR Corolla Carbon Guards 2022-2025

Carbon

Full carbon-fiber construction for an exotic look. Expect cosmetic wear on the tire-facing surface with use.

Check fitment, mounting & kit contents
$387.46
$430.51 $387.46
Sale Sold out
Shipping calculated at checkout.
Type of carbon
Installation instructions — page 1 ↗ Installation instructions — page 2 ↗

Shipping rates and delivery options are calculated for your address at checkout.

Shipping detailsReturns policy
Carbon: what to expect with use

Wear and tear from road debris develops an evenly faded, pitted finish on the tire-facing side of the guards. This tends to blend the carbon face with the fender liner. These take the beating so you car doesn't.

Shipping & Returns

Low-cost options for standard and expedited shipping. International shipping rates calculated at checkout.

View full details

THE DETAILS

Fitment, mounting & kit contents.

Batch 2 now available

Megachip™ splash guards are track-ready while subtle enough for daily driving. These provide invaluable protection to the paint behind the wheels and along the sides of the car. The front guards have a 1/2" width adjustment for stock wheels or wider setups.

Megachip carbon guards are engineered with aerodynamic performance, extreme durability, and a seamless fit and finish.

Testing was performed using computational fluid dynamics (CFD) to simulate aerodynamic performance of the guards specifically on the GR Corolla. The left-hand (driver's) side of the car is stock, while the right-hand side has Megachip guards.

Fig 1: air velocity on horizontal plane with and without guards



The results from the analysis indicate a measurable, but negligible, increase in drag.

Below is a photo showing the the pressure increase near the Megachip guards. Air velocity is approximately 100 MPH approaching the car:

Fig 2: air pressure differences with and without guards



Air direction / deflection are visualized in the following pictures, one without Megachip guards and one with them:

Fig 3: Air pressure without guards; vertical plane

Fig 4: Air pressure with guards; vertical plane

Fig 5: Results during 60-simulation analysis

The graph shows consistent results during a sequence of simulations: there is a very small increase in drag coefficient with Megachip guards. However, it is important to note that software results do not always align perfectly with real-world outcomes. The result is a splash guard taken to the highest degree of quality and design, making it extremely competent on the track and in the showroom.

Details:

  • 1.25 mm thick, 2x2 twill weave, gloss finish carbon fiber is hand-laid and autoclave-cured
  • Drastically reduces rock chips and splashing along the sides of the fenders, doors, and rear bumper. Drive with confidence on rough pavement, through construction sites, and off-road settings
  • Functional in all weather conditions including reducing spray from snow and salty slush
  • Installation takes 15 minutes
  • Engineered and tested specifically on Limit+1's GR Corolla for extensive Midwest Winter driving and track testing
  • Aerodynamically optimized using CFD analysis
  • No drilling, vehicle modifications, or aftermarket hardware required
  • Installation instructions included
  • Assembled in the USA with USA materials

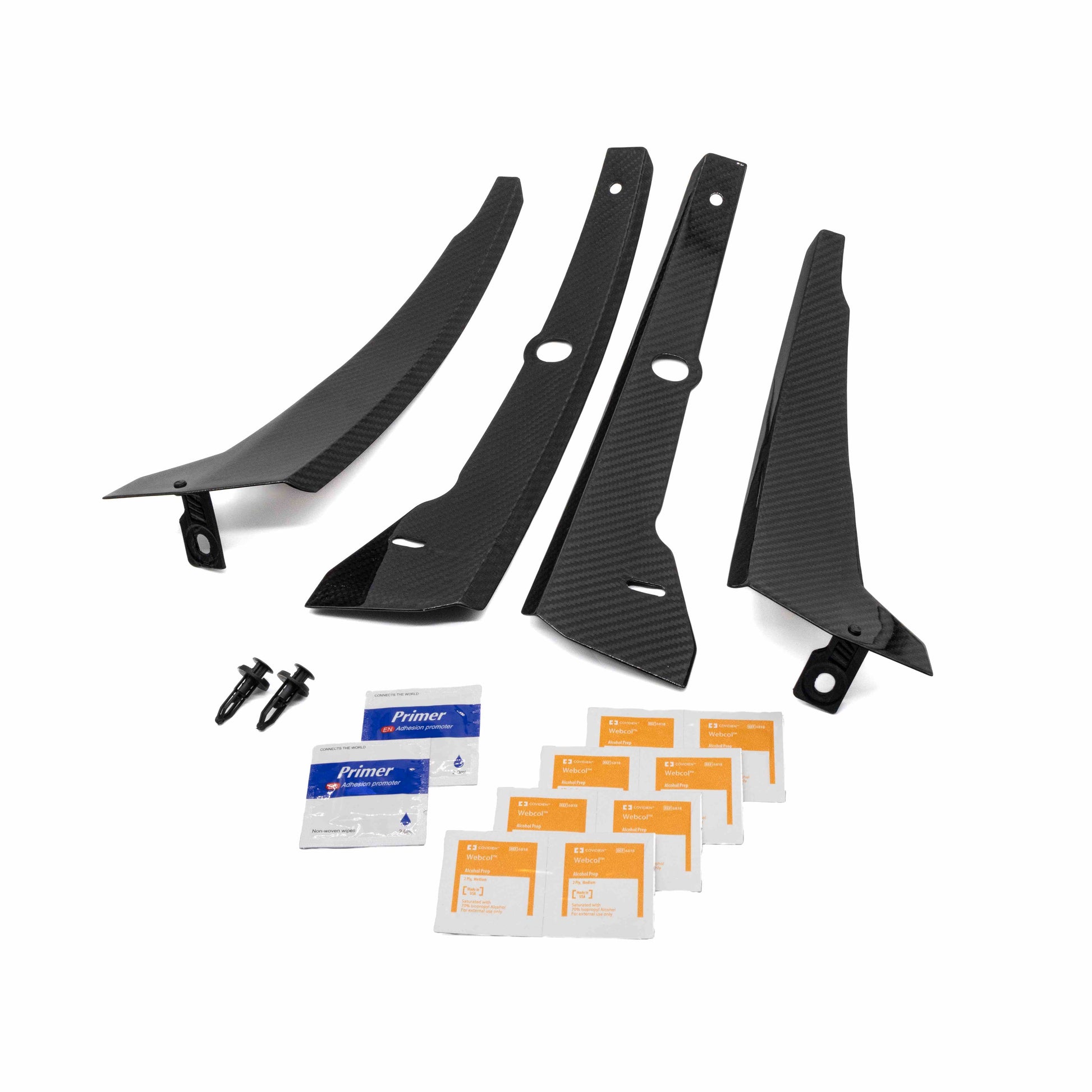

What's Included:

  • 4x Megachip guards
  • 4x Alcohol prep pads
  • 2x Adhesion promoter pads
  • 2x Washers for front guards
  • New rear pop clips
  • Installation instructions
  • Guaranteed satisfaction

CHOOSE BY YOUR PRIORITIES

Another option for your vehicle.

Compare the construction and finish, then confirm the model years and fitment on each product page.

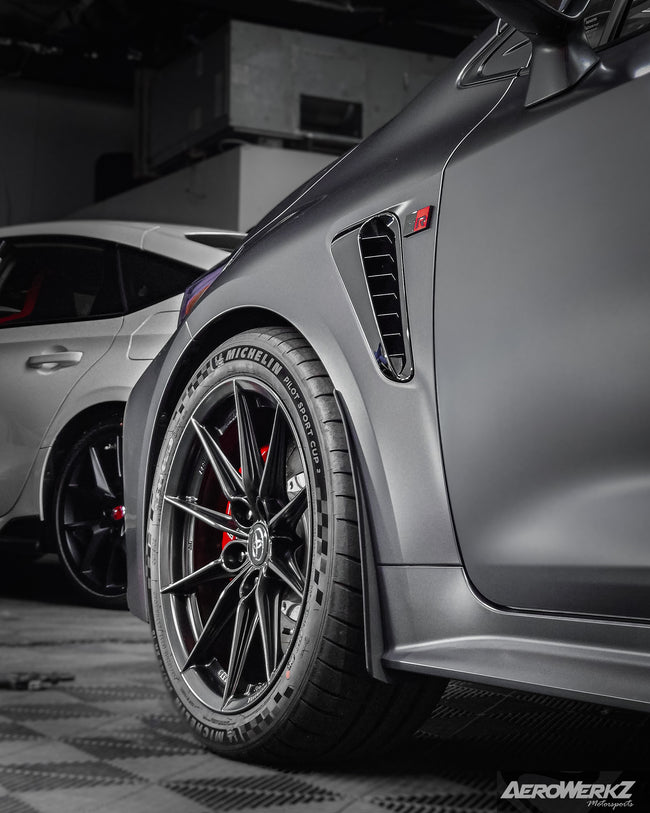

GR Corolla Front mud flap splash guard

Rubber

Toyota GR Corolla Splash Guards

Flexible rubber construction with a subtle appearance.

$215.25

View this option
GR Corolla front carbon guard

Carbon

Toyota GR Corolla Carbon Guards 2022-2025

Full carbon-fiber construction. Tire-facing cosmetic wear is expected with mileage.

From $387.46

You’re viewing this set

Installation & ownership

How does this set mount?

Mounting differs by vehicle and guard line. Review the product details and installation instructions above for the hardware, adhesive and tools required for this specific set.

Can you drive through a car wash with these? What about pressure washers?

With a proper installation, we guarantee the guards will stay attached to the vehicle except in cases of car crashes or physical contact of the guards with very large road debris.

Do these work in cold, snowy Winter conditions?

Absolutely. With six years and counting, Megachip guards have been put to the test through harsh Midwest winters, satisfying many customers who experience extremely cold conditions.

Do you offer a warranty?

We offer a one-year satisfaction guarantee, and will work with you to resolve any issues after that period. Rarely, a customer may lose a single guard in a car accident, a repair shop removing one and not replacing it, or a poor installation. We ensure customer satisfaction and will help you resolve any issues. Please email us at sales@MegachipUSA.com
